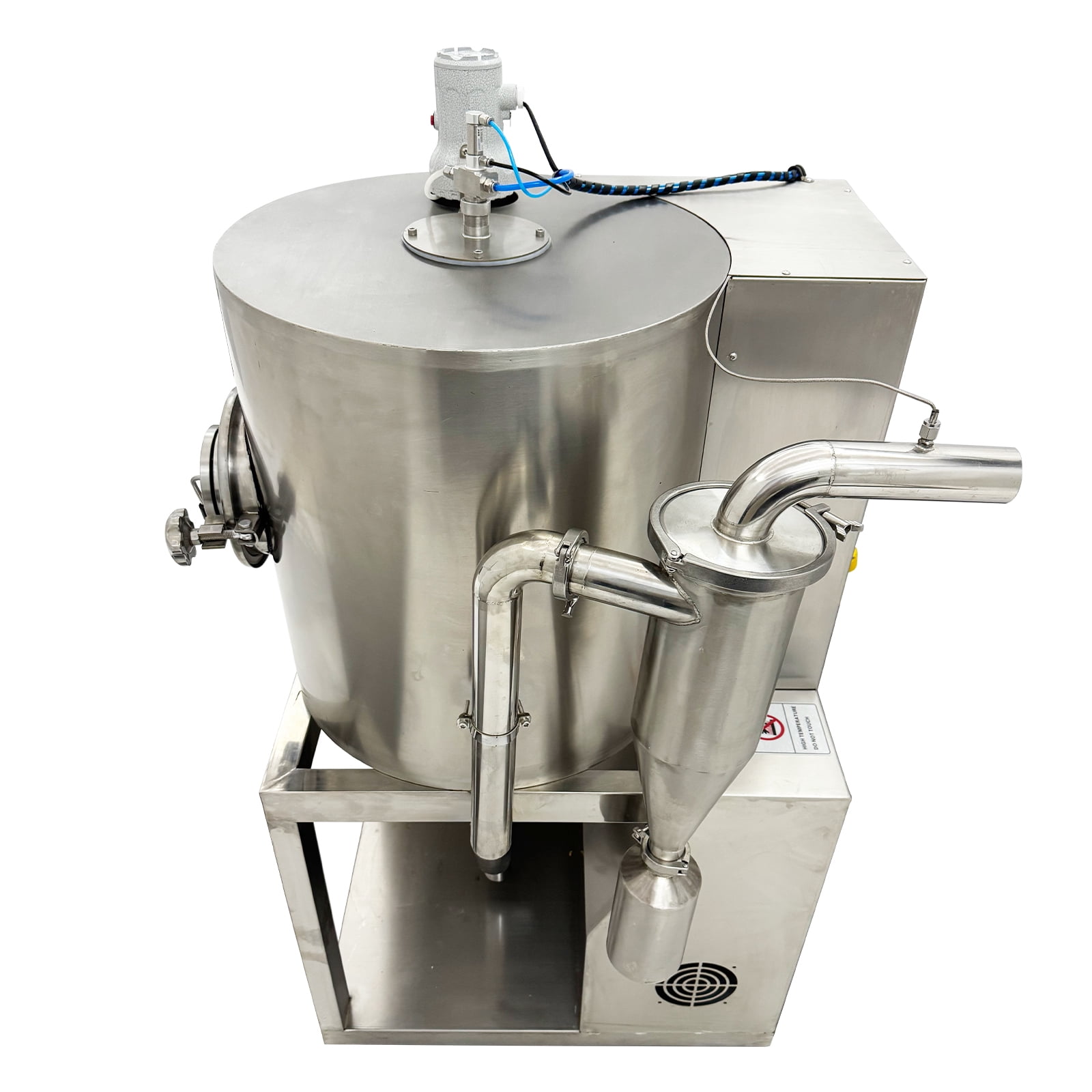

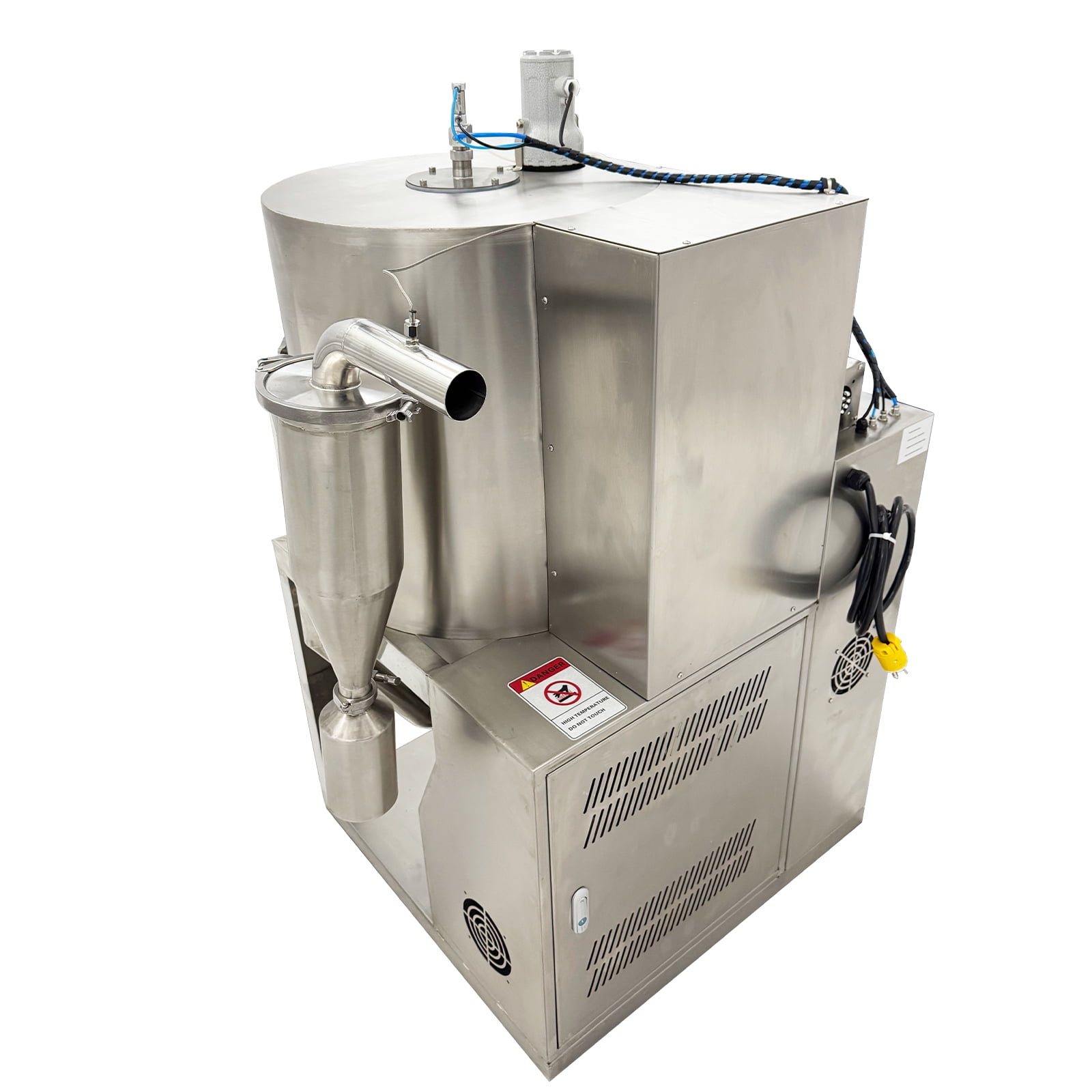

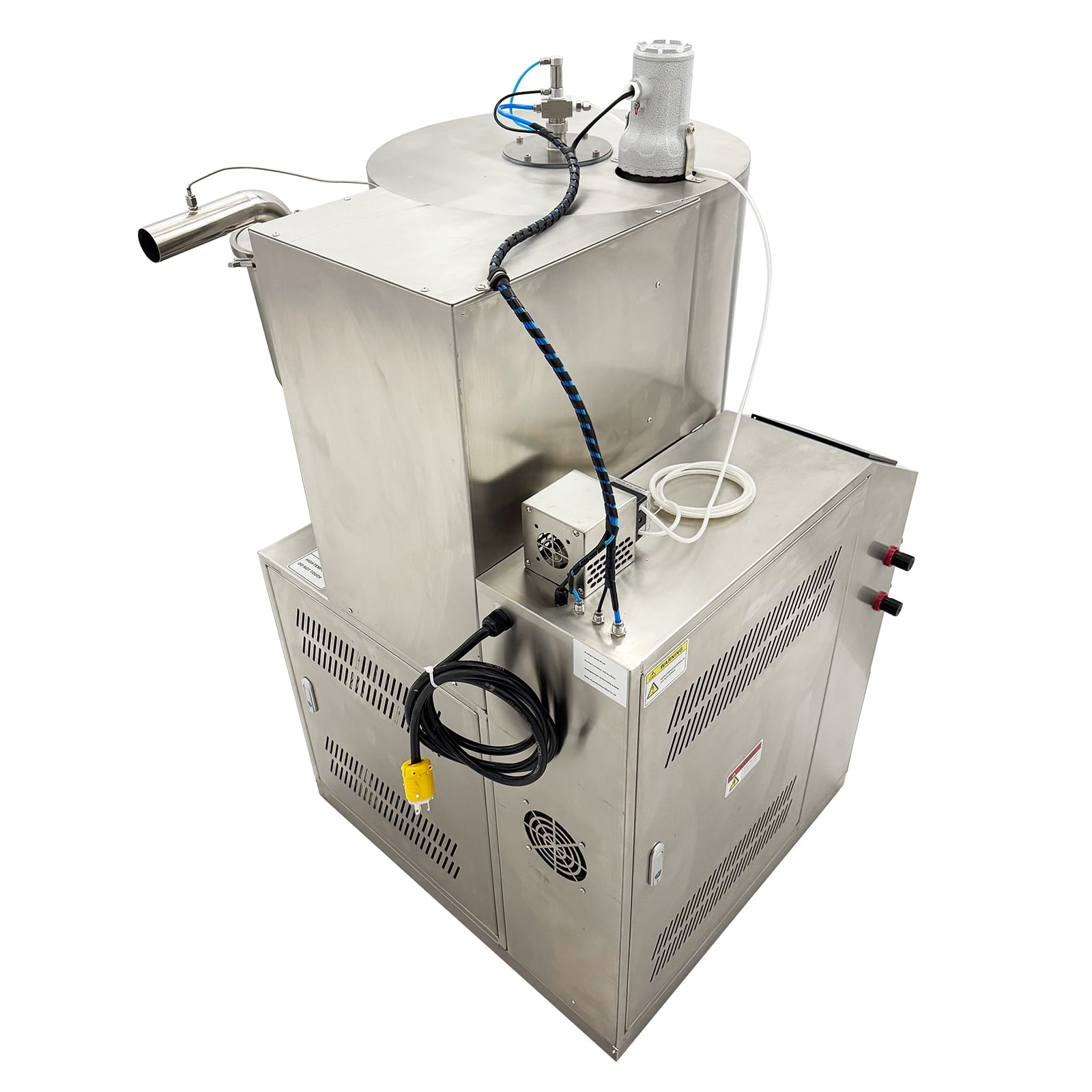

Lab Mini Spray Dryer Liquid Drying Machine Food Grade Liquid Dry Equippment 220V 3L/H Evaporation

Product Overview <br>The small-scale spray dryer is suitable for universities, research institutes, and industrial laboratories (food, pharmaceutical, and chemical) to produce micro-scale powdered particles. It has broad applicability for solutions such as emulsions and suspensions, and is ideal for drying heat-sensitive materials like biological products, bio-pesticides, and enzyme preparations (excluding organic solvents). Since the sprayed material is only exposed to high temperatures when atomized into fine droplets, the heat exposure is instantaneous, ensuring that the active ingredients remain intact after drying. <br> <br>Parameter: <br>Voltage: AC 220V <br>Phase number: 1 <br>Total power: 6.8KW <br>Inlet air temperature control: 30~300 ℃ <br>Outlet air temperature control: 30~140 ℃ <br>Evaporation water volume: 1500~3000 mL/H <br>Feeding capacity: 50~3000 mL/H <br>Average drying time: 1.0~1.5S <br>Fan: 0.55KW (Maximum air volume: 100m3/h; <br>Maximum air pressure: 18KPa) <br>Air compressor: 1.1KW (Maximum gas production: 60L/min) <br>Working pressure of compressed air: 2~3 Bar <br>Nozzle diameter: 0.04" (1.00mm) <br>Operating temperature: 10~40 ℃ <br>Feeding method: Peristaltic pump regulation <br>Real-time temperature control (PID): ±1 ℃ <br>Real-time display temperature accuracy: 0.1 ℃ <br>Material: 304 stainless steel <br>Intended use: Biological laboratory, Medical laboratory, Microbiological laboratory, Physical laboratory <br>Packing size: 41.7"*35.8"*61.4" (106cm*91cm*156cm) <br>Net weight/Gross weight: 264.5lbs(120kg) / 458.6lbs(208kg) <br> <br>Item Included(056797) <br>Spray dryer *1 <br>Accessory Kit *1

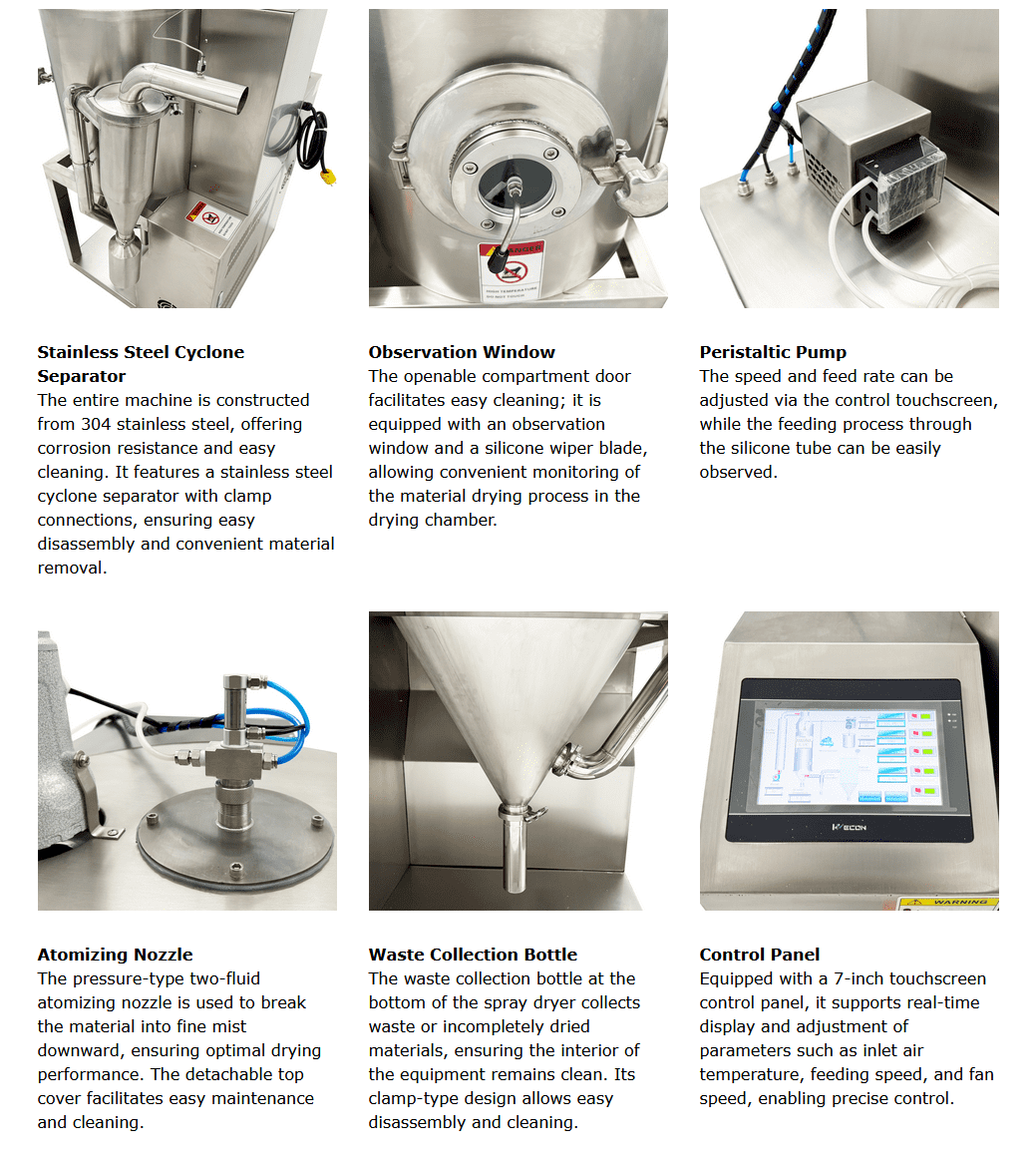

• Features a pneumatic pressure-type two-fluid nozzle for superior spray efficiency, with an optional centrifugal nozzle for versatile applications.
• Displays real-time inlet/outlet temperatures, peristaltic pump speed, air volume, and needle cleaning frequency on a user-friendly LCD touchscreen for easy operation.
• Equipped with a built-in unclogging needle that automatically clears blockages at adjustable intervals, ensuring consistent performance.

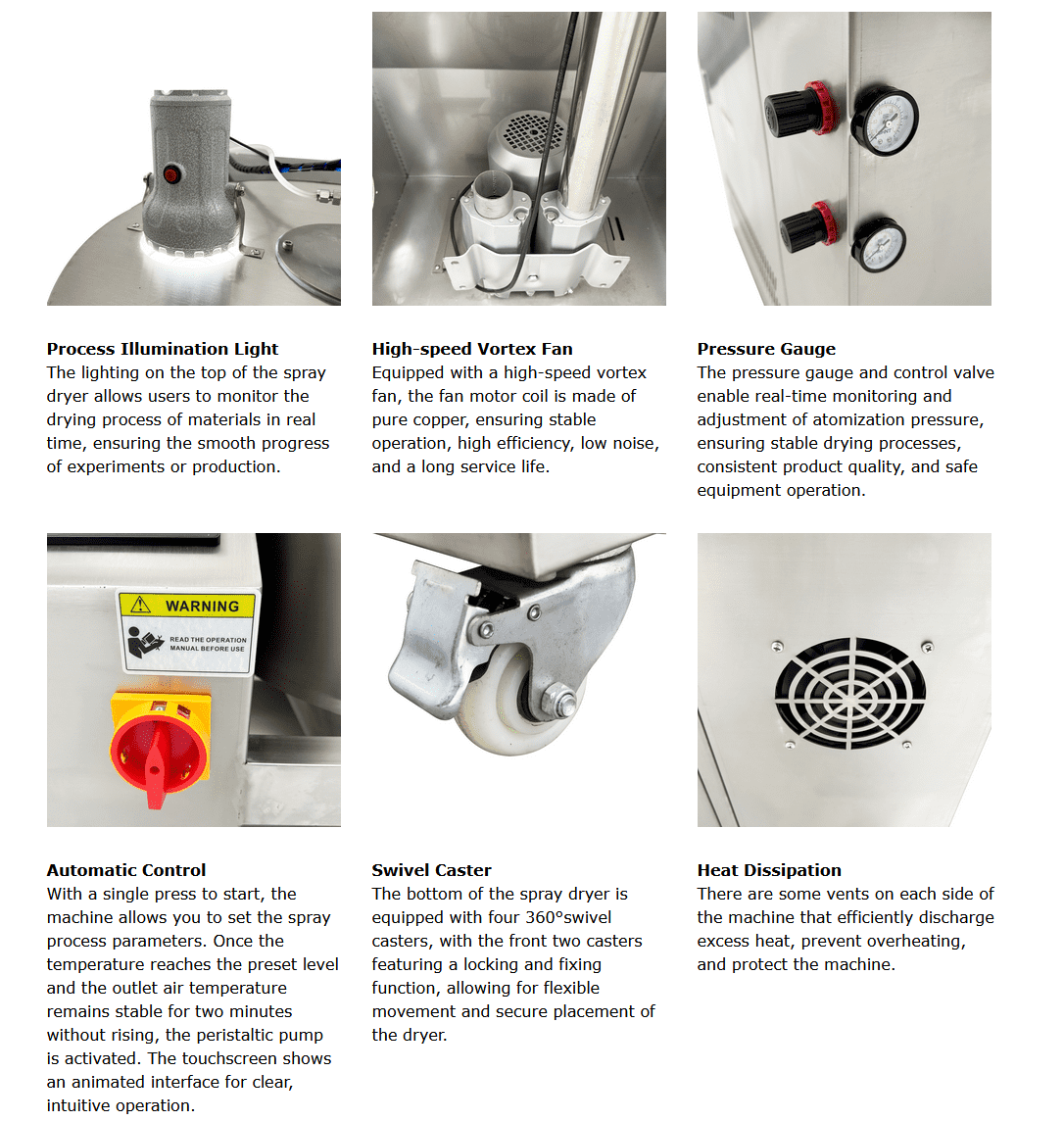

• Fan remains operational until the inlet temperature drops below 50°C if tFood-Grade Construction: Entire machine crafted from 304 stainless steel, ensuring food standard drying processes for food and powder useurned off prematurely.
• Built-in compressor generates uniformly distributed particles with excellent flowability and low noise output for clean, reliable operation.
• Maintains ±1°C accuracy across the heating zone, ensuring stable and repeatable drying results.
• Peristaltic pump allows precise control of sample input, delivering uniform particle size distribution in the final dried powder.
