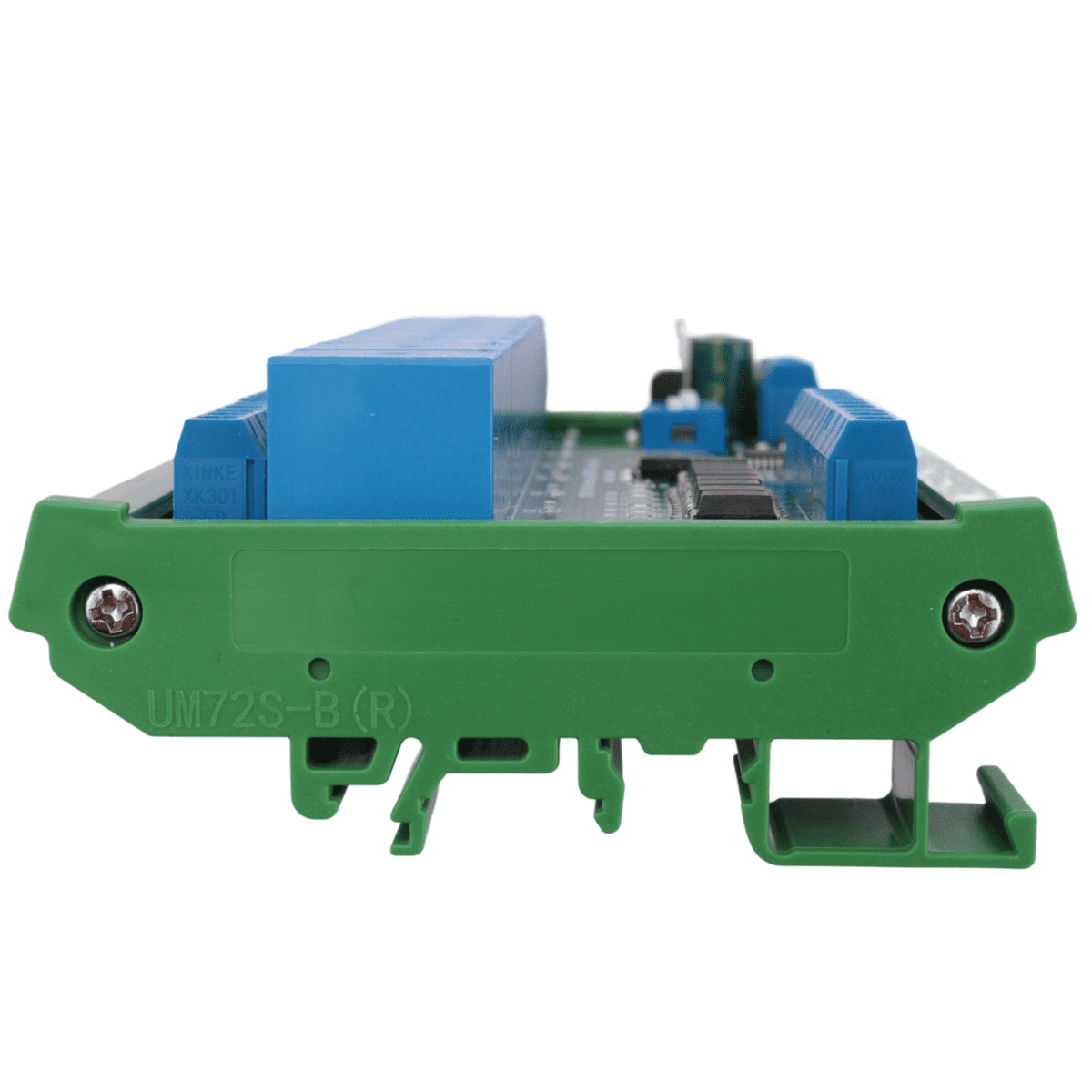

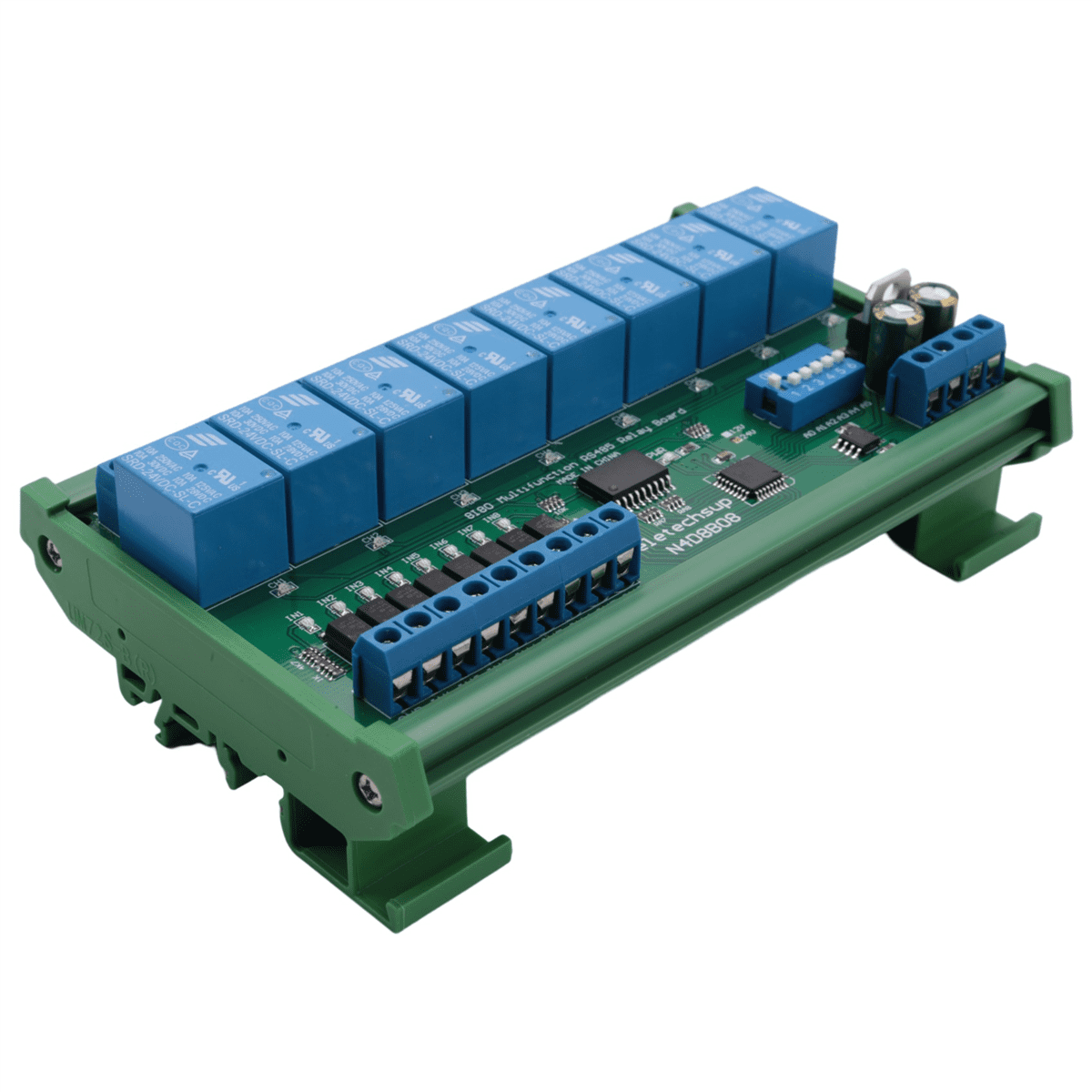

DC 24V 8 Ch RS485 Relay Board Modbus RTU UART Remote Control Switch DIN35 Rail Box for PLC Automation Control,1 * 8 input 8 output DIN rail RS485 controller module,green

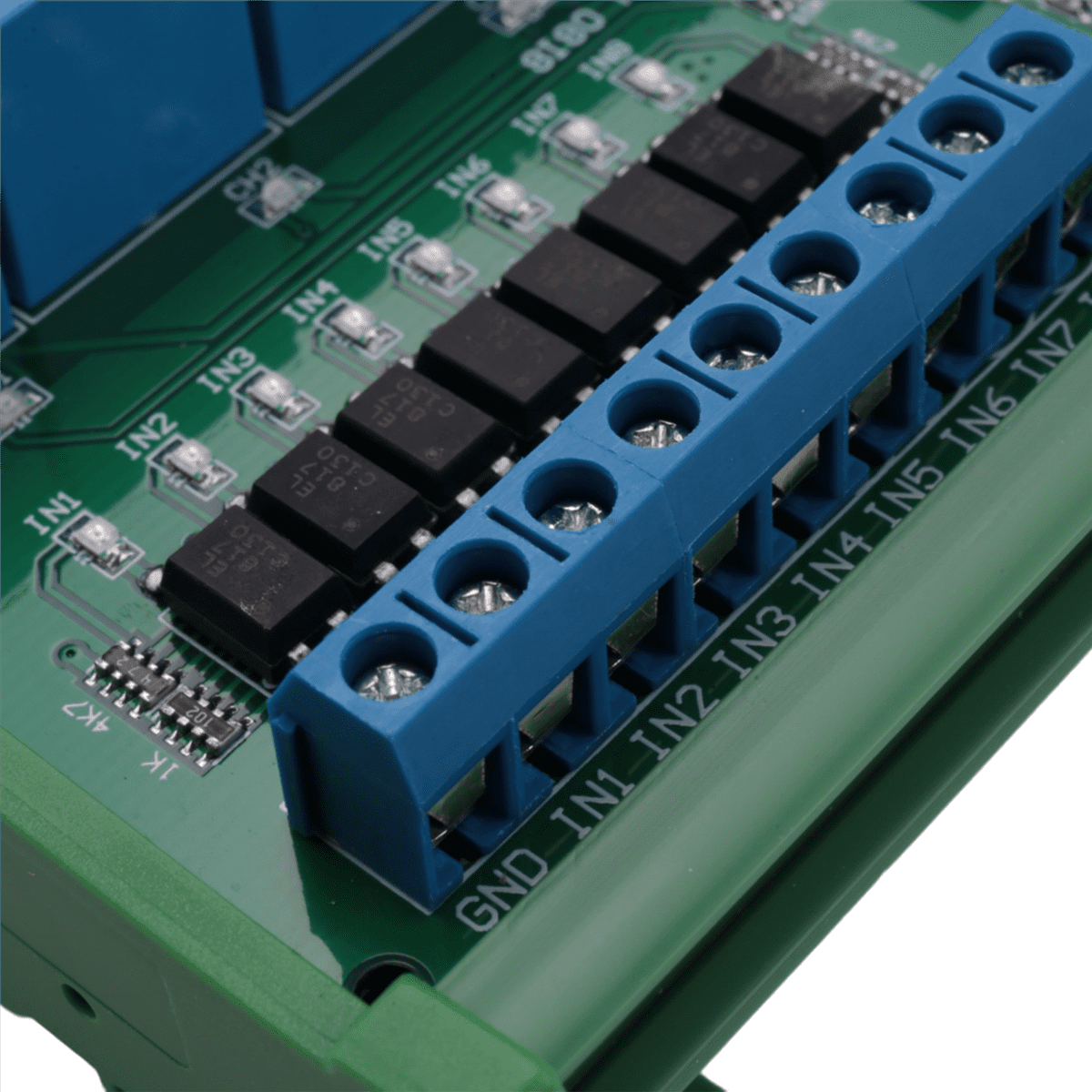

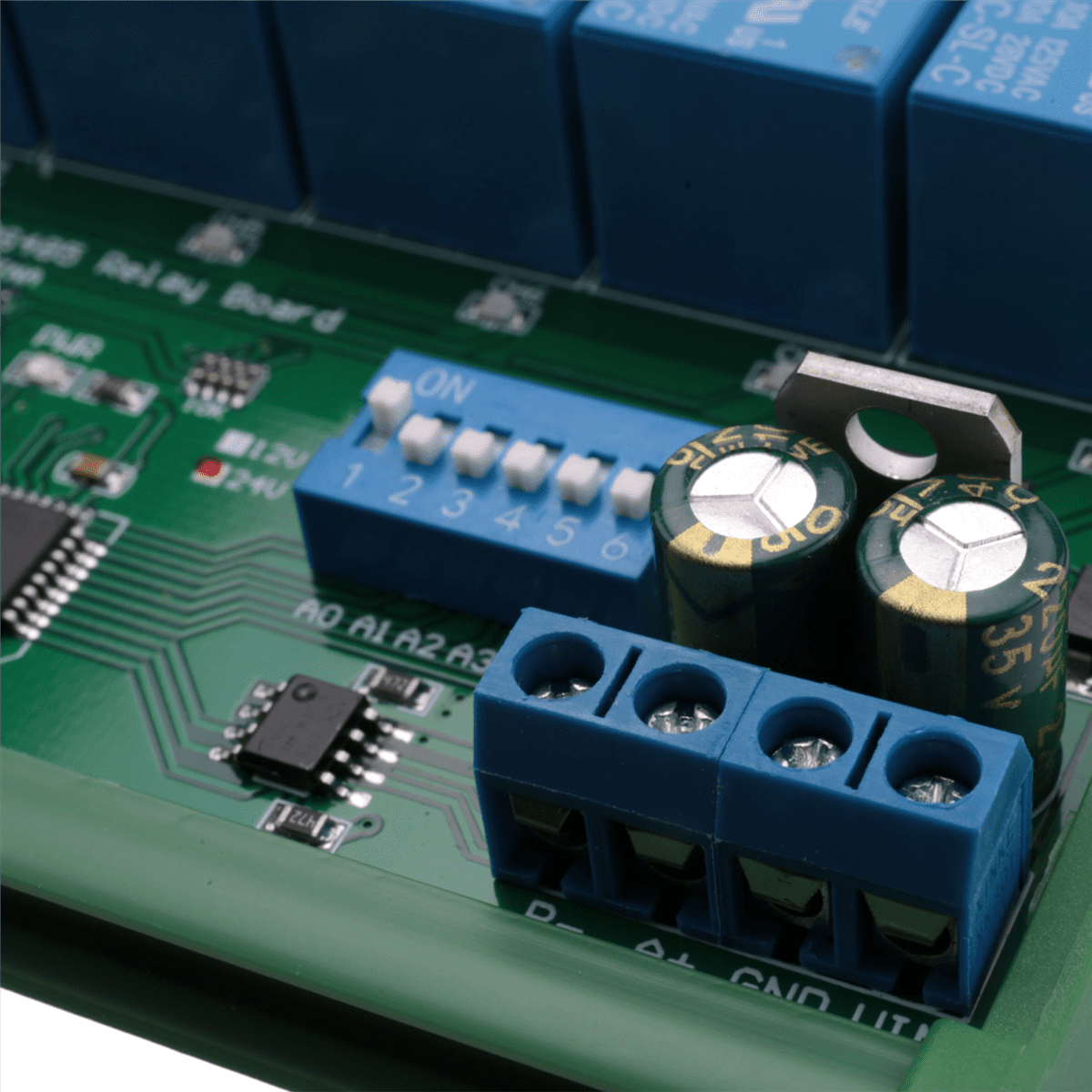

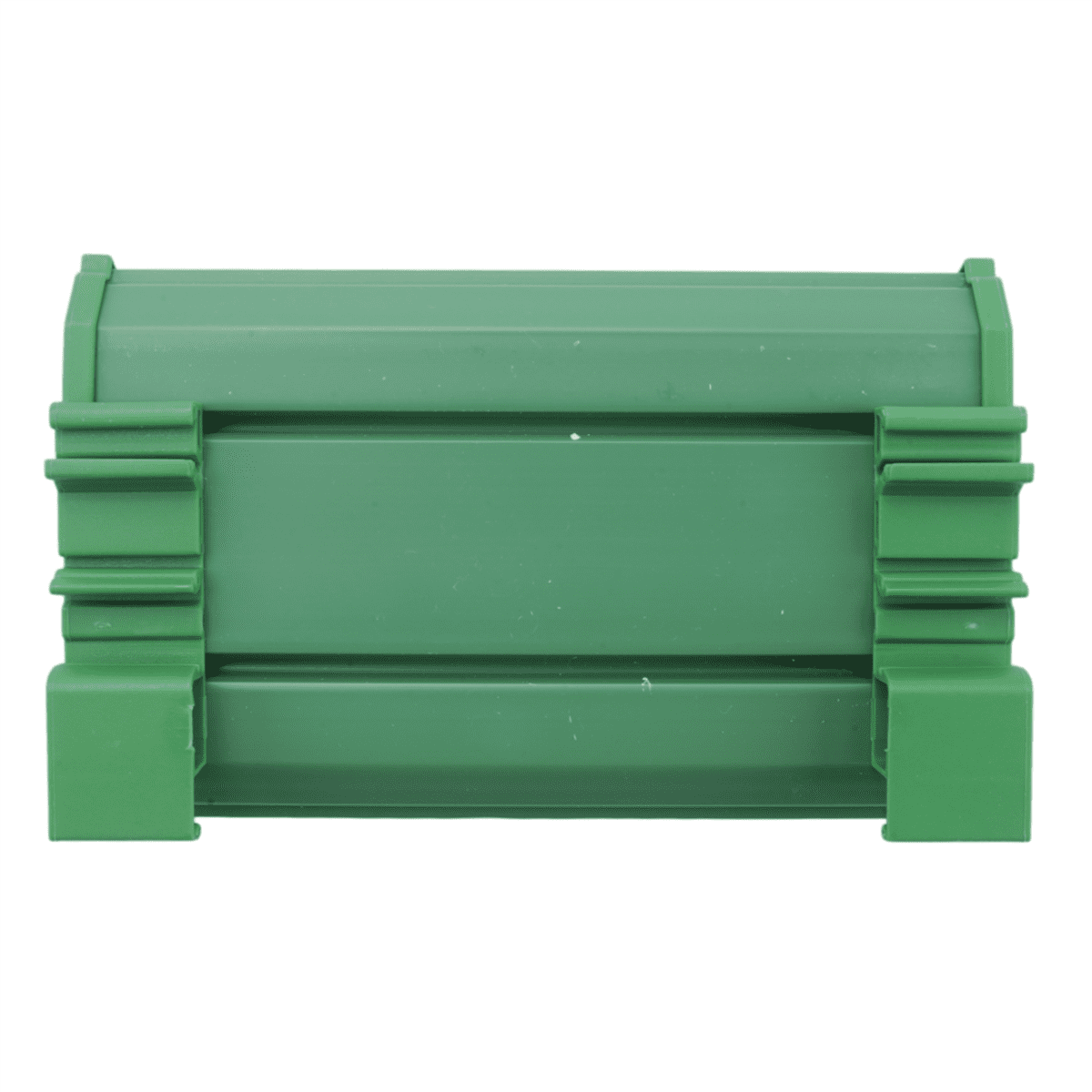

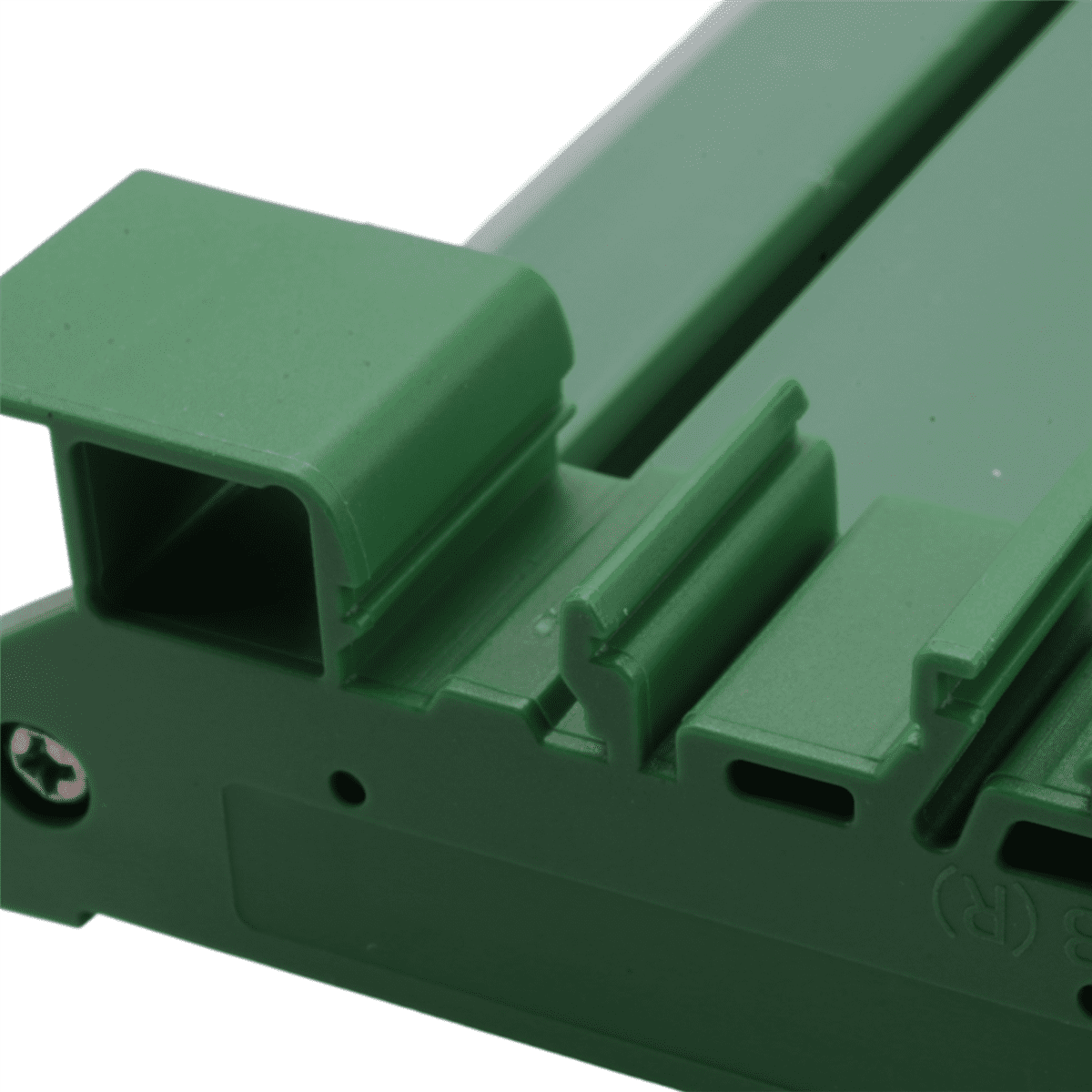

Working voltage: DC24V (24V version)<br>Working current: standby 13MA, 1 relay conduction 41MA, 2 relay conduction 69MA, 3 relay conduction 95MA, 4 relay conduction 121MA, 5 relay conduction 149MA, 6 relay conduction 175MA, 7 Two relays conduct 199MA, 8 relays conduct 225MA<br>8 photoelectrically isolated input ports (NPN is active at low level). The input/output relationship can be set to associated (default) and non-associated through commands.<br>Open, close, jog, self-lock, interlock, and delay six working modes<br>MODBUS instruction support 03 06 16 function code<br><br>The maximum delay under MODBUS instruction is 255 seconds<br>AT commands can be input by serial port super terminal (serial assistant); MODBUS commands can be input by "Modbus Poll" besides serial port super terminal input<br>In MODBUS mode, up to 64 devices can be used in parallel<br>The default baud rate is 9600BPS, you can select the baud rate 2400 4800 19200 BPS through the jumper<br>Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC<br>DIN rail box parameters:<br>Product model: UM72<br>Width: suitable for circuit board width UM72 (72 cm)<br>Insulation grade: flame retardant VO grade<br>Base plate length: suitable for 136 cm circuit board<br>Installation method: DIM35 and C45 rail<br>Colour: green<br>Material: abs<br>Size: 140x88x42mm<br><br>Package Contents:<br>1 * 8 input 8 output DIN rail RS485 controller module<br><br>Only the above package content, other products are not included.<br>Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
